Hydraulic Jump: The Ultimate Guide to Energy Dissipation in Open Channels

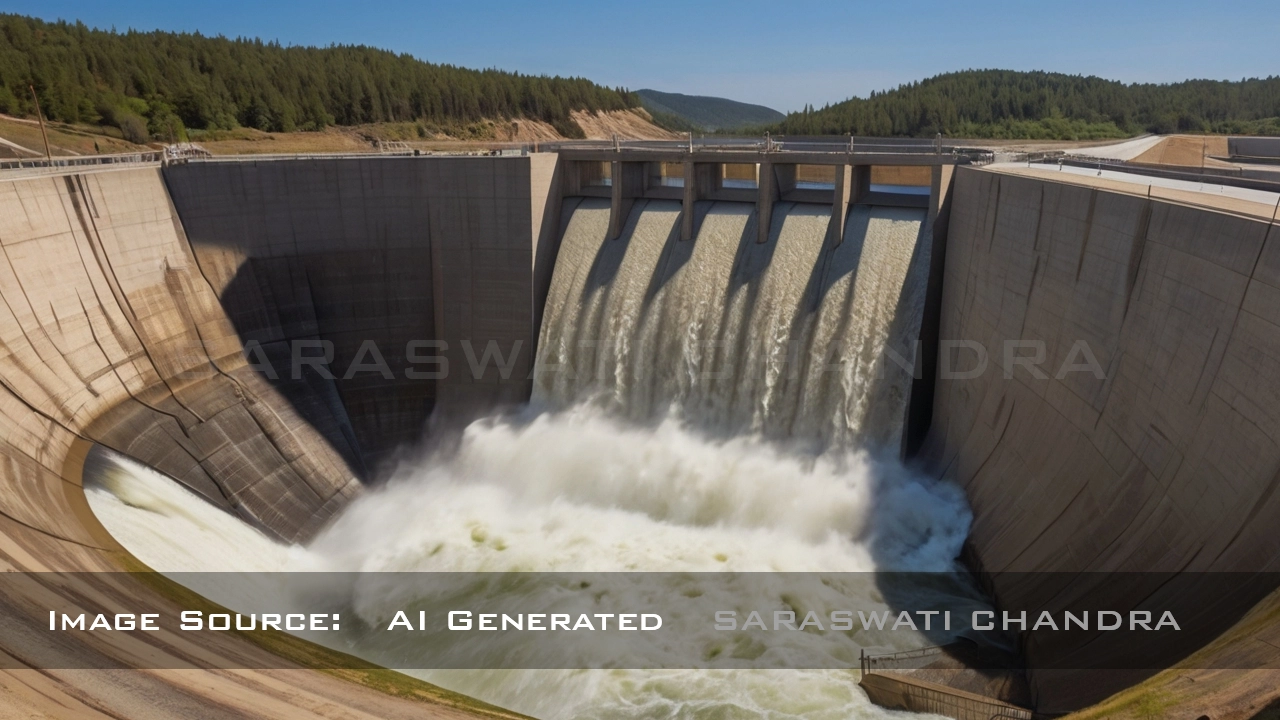

Picture a massive dam releasing a torrent of water down its spillway. The flow is incredibly fast, shallow, and powerful. If this high-velocity jet were to hit the natural riverbed below, it would scour away rock and soil, threatening the dam’s foundation. Nature, however, has an elegant and violent solution: the hydraulic jump. This phenomenon is one of the most fascinating and crucial concepts in hydraulic engineering. It serves as a natural energy dissipator.
This guide will provide a comprehensive exploration of the hydraulic jump. We will delve into its fundamental physics, from supercritical to subcritical flow. You will learn to classify its different types and derive the key formulas for its analysis. We will also cover its most important practical application: protecting dams and weirs from the destructive power of water. With detailed explanations and solved examples, this article will equip you with a thorough understanding of this essential engineering tool.
What is a Hydraulic Jump? A Fundamental Explanation
A hydraulic jump is a phenomenon in open-channel flow where the flow rapidly transitions from a high-velocity, shallow state to a low-velocity, deep state. This transition is abrupt and highly turbulent. It involves a sudden rise in the water surface elevation. Think of it as a standing shock wave in the water.
The key characteristics of a hydraulic jump are:
- An abrupt increase in flow depth.
- Significant internal turbulence and eddying.
- Formation of large surface rollers.
- Entrainment of air, giving the jump a white, frothy appearance.
- A substantial loss of the flow’s kinetic energy.
This final point is the most important one. The intense turbulence within the jump converts a large portion of the flow’s kinetic energy (energy of motion) into heat and sound. This is why a hydraulic jump is often referred to as a natural energy dissipator.
The Physics Behind the Phenomenon: Supercritical vs. Subcritical Flow
To understand why a hydraulic jump occurs, we must first understand the two primary states of open-channel flow. These states are defined by a dimensionless number called the Froude Number (Fr). The Froude number is the ratio of inertial forces to gravitational forces.
Fr = V / √(gD)
Where:
- V = The mean velocity of the flow (m/s)
- g = The acceleration due to gravity (9.81 m/s²)
- D = The hydraulic depth (for a rectangular channel, D = depth y)
Based on the Froude number, we can classify the flow:
Supercritical Flow (Fr > 1)
This flow is also called “shooting” or “rapid” flow.
- Characteristics: High velocity and shallow depth.
- Behavior: Inertial forces dominate over gravitational forces. Surface waves cannot travel upstream against the flow.
- Example: Water flowing down a steep spillway.
Subcritical Flow (Fr < 1)
This flow is also called “tranquil” or “streaming” flow.
- Characteristics: Low velocity and deep depth.
- Behavior: Gravitational forces dominate. Surface waves can travel both upstream and downstream.
- Example: A slow-moving, deep river.
Critical Flow (Fr = 1)
This is the exact transition point where inertial and gravitational forces are balanced. The specific energy of the flow is at a minimum for a given discharge.
A hydraulic jump is the mechanism by which the flow makes the transition from a supercritical state (Fr > 1) to a subcritical state (Fr < 1). This transition is not smooth; it is sudden and energetic.
Derivation of the Sequent Depth Relationship
One of the most important tasks in analyzing a hydraulic jump is to predict the depth of the water after the jump. The two depths, before (y₁) and after (y₂), are called sequent depths or conjugate depths. We can derive a relationship between them using the momentum principle.
Consider a short, horizontal, frictionless rectangular channel where a jump is formed.
Assumptions:
- The channel is horizontal and frictionless.
- The flow is steady.
- The pressure distribution at the start (section 1) and end (section 2) of the jump is hydrostatic.
- The weight of the water within the jump and the shear forces on the bed are negligible compared to the momentum change.
We apply the momentum equation between section 1 (just before the jump) and section 2 (just after the jump).
Net Force = Rate of change of momentum
P₁ – P₂ = ρQ(V₂ – V₁)
Where:
- P₁ and P₂ are the pressure forces at sections 1 and 2.
- ρ is the density of water.
- Q is the discharge (Q = AV).
- V₁ and V₂ are the velocities at sections 1 and 2.
For a rectangular channel of width ‘b’, the pressure force is P = (γ * y²/2) * b = (ρg * y²/2) * b.
The momentum equation becomes:
(ρg * y₁²/2) * b – (ρg * y₂²/2) * b = ρ * (by₂V₂ – by₁V₁)
Let q = Q/b = yV be the discharge per unit width. So, V = q/y. Substituting this:
(ρg/2)(y₁² – y₂²) = ρq(V₂ – V₁) = ρq(q/y₂ – q/y₁)
Simplifying and rearranging:
(g/2)(y₁ – y₂)(y₁ + y₂) = q² ( (y₁ – y₂)/(y₁y₂) )
Canceling (y₁ – y₂) and rearranging for q²:
q² = (g/2) * y₁y₂ * (y₁ + y₂)
This is the general momentum equation for a jump. Now, let’s relate it to the Froude number.
We know Fr₁² = V₁² / (gy₁) = (q/y₁)² / (gy₁) = q² / (gy₁³).
So, q² = Fr₁² * gy₁³.
Substitute this back into the momentum equation:
Fr₁² * gy₁³ = (g/2) * y₁y₂ * (y₁ + y₂)
Fr₁² * y₁² = (y₂/2) * (y₁ + y₂)
2Fr₁² * y₁² = y₁y₂ + y₂²
Rearranging into a quadratic equation in terms of y₂:
y₂² + y₁y₂ – 2Fr₁²y₁² = 0
Solving this quadratic equation for y₂ (and taking the positive root) gives us the Belanger momentum equation:
y₂/y₁ = ½ [√(1 + 8Fr₁²) – 1]
This fundamental formula allows us to calculate the sequent depth (y₂) if we know the initial depth (y₁) and the initial Froude number (Fr₁).
Classifying the Types of Hydraulic Jump
Not all jumps are created equal. The character of a hydraulic jump changes dramatically based on the upstream Froude number (Fr₁). The United States Bureau of Reclamation (USBR) classified jumps into several types.
H3: Undular Jump (1 < Fr₁ ≤ 1.7)
The water surface shows smooth, standing waves (undulations). The energy loss is very small (less than 5%). This jump is not very turbulent.
H3: Weak Jump (1.7 < Fr₁ ≤ 2.5)
A series of small rollers and a smooth surface are visible. The downstream water surface is still relatively smooth. Energy loss is between 5% and 15%.
H3: Oscillating Jump (2.5 < Fr₁ ≤ 4.5)
This is an unstable jump. An oscillating jet enters the jump and creates large waves that can travel for long distances downstream. These waves can damage channel banks, making this type undesirable in engineering design. Energy loss is 15% to 45%.
H3: Steady Jump (4.5 < Fr₁ ≤ 9.0)
This is the best type of jump for practical purposes. It is well-balanced, stable, and contained. The turbulence is confined within the jump itself. The energy dissipation is significant and efficient (45% to 70%). This is the target range for stilling basin design.
H3: Strong or Choppy Jump (Fr₁ > 9.0)
The jump is very rough and choppy. It produces strong waves. While the energy dissipation is very high (up to 85%), the rough surface can still be a concern downstream.
Quantifying the Energy Loss in a Hydraulic Jump
The primary purpose of encouraging a hydraulic jump is for energy dissipation. While momentum is conserved across the jump, mechanical energy is not. It is converted into heat and sound.
The specific energy (E) at any section is the sum of the depth and the velocity head:
E = y + V² / (2g)
The head loss (ΔE or hL) in a jump is the difference in specific energy before and after the jump:
ΔE = E₁ – E₂
ΔE = (y₁ + V₁² / (2g)) – (y₂ + V₂² / (2g))
This formula is correct, but a more elegant expression can be derived by relating it directly to the sequent depths. Through algebraic manipulation, the head loss can be expressed as:
**ΔE = (y₂ – y₁ )³ / (4y₁y₂) **
This simple formula beautifully shows that the energy loss is highly dependent on the difference between the two depths. A larger jump (bigger difference between y₂ and y₁) leads to a much greater energy loss.
Solved Numerical Examples
Let’s apply these formulas to practical problems. This is essential for students and practicing engineers.
Example 1: Finding Sequent Depth and Jump Type
Problem: Water flows in a horizontal rectangular channel at a depth of 0.5 m. The discharge per unit width is 5 m³/s/m. Determine if a hydraulic jump will form, and if so, find the sequent depth and the type of jump.
Solution:
- Calculate initial velocity (V₁) and Froude number (Fr₁):
- q = 5 m³/s/m, y₁ = 0.5 m
- V₁ = q / y₁ = 5 / 0.5 = 10 m/s
- Fr₁ = V₁ / √(gy₁) = 10 / √(9.81 * 0.5) = 10 / √4.905 = 10 / 2.215
- Fr₁ = 4.51
- Since Fr₁ > 1, the flow is supercritical and a hydraulic jump is possible.
- Determine the type of jump:
- Fr₁ = 4.51 falls in the range 4.5 < Fr₁ ≤ 9.0.
- Therefore, it is a Steady Jump.
- Calculate the sequent depth (y₂):
- Use the Belanger equation: y₂/y₁ = ½ [√(1 + 8Fr₁²) – 1]
- y₂ / 0.5 = 0.5 * [√(1 + 8 * 4.51²) – 1]
- y₂ / 0.5 = 0.5 * [√(1 + 8 * 20.34) – 1]
- y₂ / 0.5 = 0.5 * [√(1 + 162.72) – 1]
- y₂ / 0.5 = 0.5 * [√163.72 – 1] = 0.5 * [12.8 – 1] = 0.5 * 11.8
- y₂ / 0.5 = 5.9
- y₂ = 2.95 m
The depth will jump from 0.5 m to 2.95 m.
Example 2: Calculating Energy Loss
Problem: For the jump described in Example 1, calculate the head loss and the percentage of initial energy dissipated.
Solution:
- Calculate head loss (ΔE) using the simplified formula:
- ΔE = (y₂ – y₁ )³ / (4y₁y₂)
- ΔE = (2.95 – 0.5)³ / (4 * 0.5 * 2.95)
- ΔE = (2.45)³ / 5.9 = 14.7 / 5.9
- ΔE = 2.49 meters
- The jump dissipates energy equivalent to 2.49 meters of water head.
- Calculate initial specific energy (E₁):
- E₁ = y₁ + V₁² / (2g) = 0.5 + (10)² / (2 * 9.81)
- E₁ = 0.5 + 100 / 19.62 = 0.5 + 5.1
- E₁ = 5.6 meters
- Calculate the percentage of energy dissipated:
- % Loss = (ΔE / E₁) * 100
- % Loss = (2.49 / 5.6) * 100
- % Loss ≈ 44.5%
This confirms our classification of a “Steady Jump,” which typically dissipates 45% to 70% of the energy.
The Practical Application: Why Hydraulic Jumps are Essential for Spillway Design
This is where the theory of the hydraulic jump becomes a life-saving engineering tool. Water released from a dam’s reservoir accelerates as it flows down the steep slope of a spillway. At the bottom, its velocity is extremely high and its depth is shallow (supercritical flow). This high-velocity jet has immense erosive power.
If this jet were allowed to flow directly onto the natural riverbed downstream, it would cause severe scour. This is the erosion of the riverbed and banks. Over time, this scour could undermine the foundation of the dam itself, leading to catastrophic failure.
To prevent this, engineers design a structure at the toe of the dam called a stilling basin.
Stilling Basins: Engineering the Jump
A stilling basin is a concrete-lined apron designed specifically to force a hydraulic jump to occur within its protected confines. Its purpose is to contain the violent, turbulent energy dissipation process on a man-made structure that can withstand it.
The design of a stilling basin involves two main goals:
- Force the jump to occur: The basin floor is set at an elevation that ensures the downstream river depth (the tailwater depth) is sufficient to create the required sequent depth (y₂) for a jump to form.
- Stabilize and shorten the jump: A natural jump can be quite long. To make the stilling basin more compact and economical, various devices called appurtenances are used.
Common Stilling Basin Appurtenances:
- Chute Blocks: These are blocks at the entrance of the basin. They lift and spread the incoming jet, which starts the dissipation process and helps stabilize the jump.
- Baffle Piers (or Baffle Blocks): These are large blocks placed in the middle of the basin. They create significant drag and break up the flow, acting as a major source of energy dissipation. They are extremely effective but cannot be used at very high velocities due to the risk of cavitation damage.
- End Sill: This is a raised sill at the end of the basin. It helps to deflect any remaining high-velocity flow upwards, away from the riverbed, and contributes to keeping the jump within the basin.
The USBR has developed a series of standard stilling basin designs (Type I, II, III, IV, etc.) for different Froude numbers and flow conditions, which are widely used around the world.
Frequently Asked Questions (FAQ)
Q1: What is the difference between a hydraulic jump and a hydraulic drop?
A hydraulic jump is a transition from supercritical flow (fast, shallow) to subcritical flow (slow, deep). A hydraulic drop is the opposite. It is a smooth transition from subcritical to supercritical flow, typically occurring as water goes over a weir or the crest of a spillway.
Q2: Is a hydraulic jump always desirable?
In the context of energy dissipation below dams and weirs, it is highly desirable and intentionally engineered. However, an uncontrolled jump (like an oscillating jump) in an unlined irrigation canal can be destructive to the channel banks. So, its desirability depends on the context.
Q3: What are conjugate depths?
Conjugate depths are another term for sequent depths. They are the two depths (y₁ and y₂) before and after a hydraulic jump that have the same momentum force for a given discharge.
Q4: Where can you see a hydraulic jump in everyday life?
You can create a simple one in your kitchen sink! Let a smooth stream of water from the faucet hit the flat bottom of the sink. You will see a small, circular area of fast, smooth flow. At a certain radius, the water will suddenly “jump” up and become deeper and more turbulent. This is a circular hydraulic jump.
Conclusion: Taming the Force of Water
The hydraulic jump is a remarkable display of fluid dynamics. It is a violent, turbulent, and powerful event. Yet, it is this very violence that engineers harness for a peaceful purpose: the safe management of water. By understanding the intricate relationship between velocity, depth, and energy, we can predict and control this phenomenon.
From the fundamental principles of the Froude number and the momentum equation, we derived the tools to analyze the jump’s characteristics. We saw how a hydraulic jump is classified and how its immense capacity for energy dissipation is calculated. Most importantly, we have seen its critical role in the design of stilling basins, which are essential for the long-term safety and stability of dams worldwide. The hydraulic jump is a perfect example of how a deep understanding of natural principles allows us to build a safer, more resilient world.
