The Jeddah Tower Project: Conquering Engineering’s Final Frontier
Humanity has always reached for the sky. From ancient pyramids to modern marvels, our ambition is etched in stone and steel. Today, that ambition is taking shape on the coast of the Red Sea. The Jeddah Tower project represents more than just another tall building. It is a quest to break the one-kilometer barrier. This is a monumental leap for architecture and engineering. This article explores the incredible challenges and brilliant solutions behind this megatall structure.
The vision for the Jeddah Tower project is bold. It aims to become the centerpiece of Jeddah Economic City. This new urban district promises to redefine Jeddah’s skyline. However, building to such an unprecedented height is not simple. Engineers face immense hurdles. They must combat gravity, wind, and intense desert heat. Every aspect of the tower, from its foundation to its spire, requires new technology and innovative thinking. Let’s delve into the engineering genius making the world’s future tallest building a reality.
What is the Jeddah Tower Project?
The Jeddah Tower project, previously known as the Kingdom Tower, is a skyscraper currently under construction in Jeddah, Saudi Arabia. Upon completion, it will stand at a height of at least 1,000 meters (3,281 feet). This will make it the tallest building in the world. It decisively surpasses the current record holder, the Burj Khalifa.
The tower is the flagship development of Jeddah Economic City. It is designed to be a mixed-use marvel. It will house:
- A luxury Four Seasons hotel.
- Serviced apartments.
- High-end office spaces.
- Luxury condominiums.
- The world’s highest observatory.
This project is a cornerstone of Saudi Vision 2030. The national plan aims to diversify the country’s economy. It seeks to reduce reliance on oil. The tower symbolizes a new era of progress and innovation for the Kingdom.
The Genius Behind the Design: Adrian Smith + Gordon Gill
The vision for the Jeddah Tower was conceived by a world-renowned architectural firm. Adrian Smith + Gordon Gill (AS+GG) Architecture is the mastermind behind the design. Adrian Smith is no stranger to record-breaking heights. He was the lead architect for the Burj Khalifa while at Skidmore, Owings & Merrill.
For the Jeddah Tower project, the design philosophy was “asymmetrical and tapering.” This is not just for aesthetics. The shape is a direct response to a primary engineering challenge: wind. The tower’s form is inspired by a folded bundle of fronds from a desert plant. This organic shape is highly aerodynamic. It provides an elegant and cost-effective solution to the forces of nature.
Overcoming Gravity: The Foundation and Structural System
Building a kilometer-high structure starts deep within the earth. A stable foundation is the most critical element. The structural system must be strong enough to support its own colossal weight. Furthermore, it must resist all external forces.
A Foundation to Anchor a Giant
The ground conditions in Jeddah are not ideal for a megatall tower. The soil is soft and the water table is high. To overcome this, engineers designed a formidable foundation system.
- Massive Piles: The tower rests on 270 bored concrete piles. These piles are enormous. They measure 1.5 to 1.8 meters in diameter. They are driven as deep as 105 meters into the ground. This anchors the building firmly to the bedrock.
- Concrete Raft: These piles support a gigantic reinforced concrete raft. The raft is about 5 meters thick. This massive slab distributes the tower’s immense load evenly across the piles. It creates a stable base that minimizes settlement.
This foundation work was a monumental undertaking in itself. It required specialized equipment and rigorous testing. Every pile was tested to ensure it could handle the projected loads. This unseen base is the true anchor of the Jeddah Tower project.
The Three-Petal “Y” Shape: A Lesson in Stability
The tower’s most recognizable feature is its three-winged, or “Y-shaped,” floor plan. This is a brilliant piece of structural engineering. It is an evolution of the buttressed core system used in the Burj Khalifa.
Here’s how it works:
- A Strong Core: The center of the tower is a massive, hexagonal concrete core. This core houses the elevators and other essential services. It acts as the building’s spine.
- Three Supporting Wings: Three wings extend from this central core. They taper as they rise. These wings act as “buttresses.” They provide immense support to the central core.
- Resisting Torsion: This configuration is incredibly effective at resisting twisting forces, known as torsion. Wind pushing against one side of the building is counteracted by the other two wings. This keeps the tower stable, even in high winds.
This design makes the building exceptionally stiff and strong. It allows for a slender, elegant form without sacrificing structural integrity. This is a core principle of modern skyscraper engineering.
The Concrete Conundrum: Pumping to New Heights
One of the biggest logistical challenges is getting concrete to the top. Pumping standard concrete to a height of 1,000 meters is impossible. The pressure required would be too great for pumps and pipes to handle. Moreover, the concrete would begin to set before reaching its destination.
Engineers at the Jeddah Tower project developed innovative solutions.
- High-Strength Concrete: A special concrete mix was developed. This mix features very high compressive strength. It can withstand the immense pressures at the tower’s base.
- Advanced Pumping Systems: The project uses a series of powerful pumps. These pumps are manufactured by the German company Putzmeister. They are specifically designed for high-altitude projects. The concrete is pushed upwards in stages.
- Rigorous Testing: Before use, every batch of concrete is extensively tested. This ensures it meets the strict specifications for strength, flow, and setting time. The desert heat adds another layer of complexity. The concrete must be kept cool during mixing and pumping to prevent it from setting too quickly.
Battling the Elements: Wind and Heat
A kilometer-high tower is a massive sail. It must withstand powerful desert winds. It also has to manage the relentless Saudi Arabian sun. The design incorporates several clever features to handle these environmental forces.
Taming the Wind: Aerodynamic Engineering
Wind is perhaps the greatest enemy of any tall building. As wind flows around a structure, it can create vortices. These swirling air patterns can cause the building to vibrate or sway. This phenomenon, known as “vortex shedding,” can be dangerous.
The design of the Jeddah Tower is a masterclass in aerodynamics.
- Tapering Form: The tower is not a simple, straight extrusion. It tapers continuously as it rises. Each of the three wings steps back at a different height.
- Disrupting Wind Flow: This constantly changing shape confuses the wind. It prevents any organized vortices from forming along the building’s height. The wind cannot “lock on” to the structure. This significantly reduces wind-induced vibrations.
- Wind Tunnel Testing: The design was refined through extensive wind tunnel testing. Models of the tower were subjected to simulated wind conditions. This allowed architects and engineers to optimize the shape for maximum stability.
This approach to megatall structure design is passive. It uses the building’s form to control wind forces. This is more efficient than relying on heavy, active damping systems.
The Desert Heat Challenge
In Jeddah, daytime temperatures can be extreme. The sun beating down on a massive glass facade can create an oven-like effect inside. This would require an enormous amount of energy for air conditioning. The Jeddah Tower project tackles this with a high-performance exterior wall.
The facade, or “curtain wall,” has several key features:
- Low-E Glass: The tower uses low-emissivity (Low-E) glass. This glass has a microscopic, transparent coating. It reflects thermal radiation. This keeps the sun’s heat out while allowing visible light to pass through.
- Shading Fins: The building’s form incorporates deep grooves. These grooves act as external shading fins. They shield the glass from the high-angle sun. This reduces direct solar gain.
- Minimizing Thermal Bridges: The wall system is designed to minimize thermal bridging. This is when heat is conducted through the structural frame. Special insulating materials are used to break these thermal paths.
This integrated system protects the building from the harsh climate. It dramatically reduces the energy required for cooling. This makes the building more sustainable and less expensive to operate.
The Vertical Challenge: Elevators and Logistics
Moving people and materials efficiently in a kilometer-high building is a huge challenge. Traditional steel elevator cables are too heavy for such heights. Construction logistics also become incredibly complex at extreme altitudes.
The World’s Fastest and Longest Elevators
The Jeddah Tower will feature one of the world’s most advanced elevator systems. Developed by Finnish company KONE, the key innovation is the “UltraRope.”
- Carbon Fiber Technology: Instead of steel, KONE UltraRope is made from a carbon fiber core. It is coated in a high-friction polymer.
- Incredibly Lightweight: Carbon fiber is extremely strong but very light. The UltraRope is up to 90% lighter than conventional steel ropes.
- Breaking a Barrier: This weight reduction is crucial. It makes a single, continuous elevator run of over 500 meters possible. Jeddah Tower will have an elevator that travels 660 meters.
- Speed and Efficiency: The tower will also feature double-decker elevators. These can travel at speeds of over 10 meters per second (22 mph). This allows for rapid transport to the sky lobby and observatory.
The UltraRope technology is a game-changer. It is one of the key enabling technologies that makes the Jeddah Tower project feasible.
Construction Logistics at 1,000 Meters
Building the tower is like running a small city in the sky. Every piece of material and every worker must be transported vertically. This requires meticulous planning and powerful machinery.
- Climbing Cranes: The project uses specialized “climbing” cranes. These cranes are attached to the building’s core. As the core grows taller, the cranes “climb” up with it. This ensures they are always positioned at the top of the construction site.
- Just-in-Time Delivery: Storing materials at height is impractical. A just-in-time delivery system is used. Materials are hoisted up as they are needed. This requires precise coordination between ground crews and construction teams.
- Worker Safety: Safety is the top priority. Workers operating at extreme heights face unique risks. They must be tethered at all times. They also need protection from high winds and intense sun. Work schedules are often adjusted to avoid the hottest parts of the day.
The successful coordination of these logistics is a daily engineering marvel. It is a critical, though often overlooked, aspect of the Jeddah Tower project.
The Human Element: Building for Occupancy
A building is more than its structure. It must be a safe, comfortable, and functional space for people. In a megatall tower, providing these basic needs becomes an engineering challenge in itself.
Life Support at Altitude
Providing water, clean air, and waste removal at 1,000 meters is complex.
- Water Supply: Water cannot be pumped from the ground to the top in one go. The tower uses a series of water tanks at different mechanical floors. Water is pumped up in stages from one tank to the next.
- HVAC Systems: The heating, ventilation, and air conditioning (HVAC) system is similarly segmented. Different zones of the building have their own mechanical plants. This is more efficient and provides redundancy in case of a failure.
- Waste Management: Waste is collected on each floor. It is then transported down through a series of high-speed service elevators. Some systems even use vacuum chutes for efficient disposal.
Fire and Life Safety Systems
Safety during an emergency, such as a fire, is paramount. Evacuating thousands of people from a kilometer-high building is not feasible with stairs alone. The Jeddah Tower project incorporates a “defend-in-place” strategy.
- Pressurized Refuge Floors: The tower has several pressurized refuge floors. These are located throughout the building. They are specially constructed with fire-resistant materials. They have their own independent air supply.
- Emergency Egress: In case of a fire, occupants are directed to these refuge floors. They can wait there safely until help arrives. The air pressure in these areas prevents smoke from entering.
- Advanced Fire Suppression: The building is equipped with a state-of-the-art fire suppression system. This includes sprinklers, smoke detectors, and an intelligent alarm system. The system can pinpoint the exact location of a fire and direct emergency services.
These advanced safety measures are essential. They provide peace of mind for everyone who will live and work in the tower.
The Current Status and Future of the Jeddah Tower Project

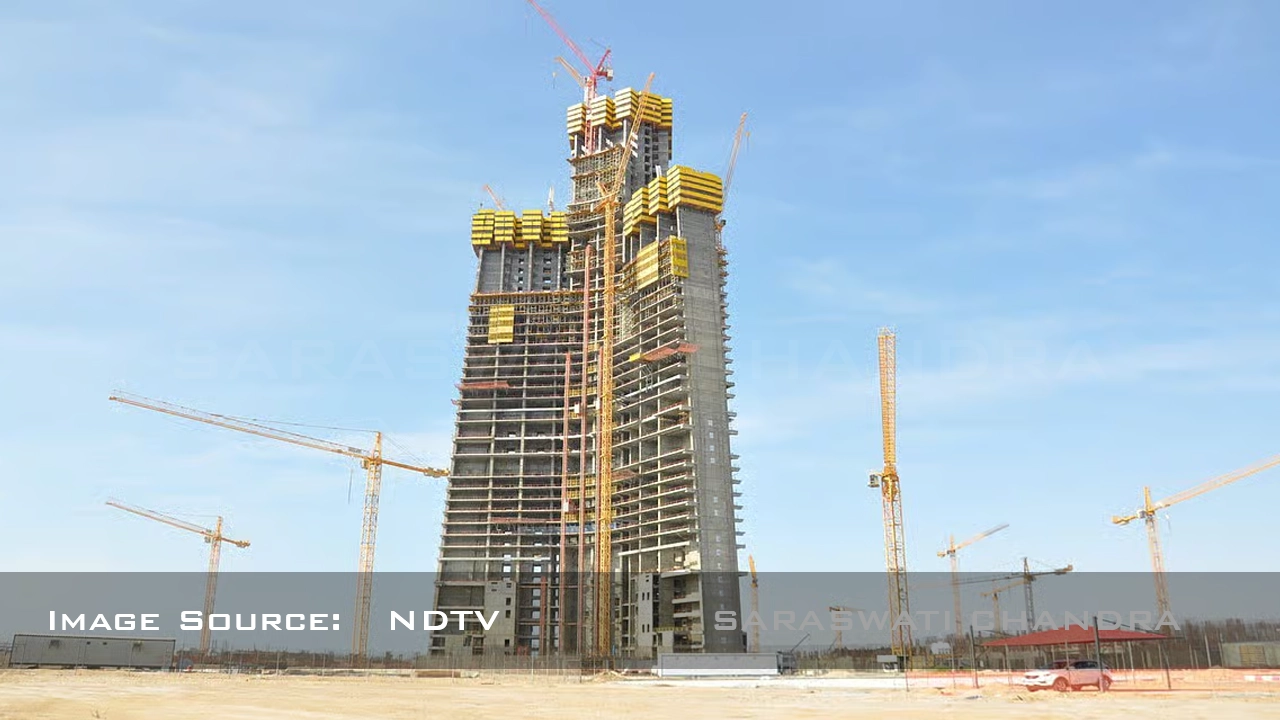

The journey of the Jeddah Tower project has not been smooth. Construction began in 2013. It progressed steadily for several years. By early 2018, the central core had reached a height of over 250 meters.
However, construction was halted in 2018. This was due to labor issues with a contractor following a government purge in Saudi Arabia. For several years, the iconic concrete structure stood as a silent monument to its own ambition.
In September 2023, exciting news emerged. Reports confirmed that construction was set to resume. Jeddah Economic City was seeking new contractors to complete the landmark project. This has renewed global interest in the tower. It signals a new chapter in its long and complex story.
Once complete, the Jeddah Tower will be a global icon. It will attract tourists and businesses from around the world. It will cement Jeddah’s status as a major global city. More importantly, it will stand as a testament to what human ingenuity can achieve.
Frequently Asked Questions (FAQ)
How tall will the Jeddah Tower be?
The Jeddah Tower is designed to be at least 1,000 meters (1 kilometer) or 3,281 feet tall. The final, exact height is being kept a secret until completion, but it will be the first building in history to surpass the one-kilometer mark.
Why was construction on the Jeddah Tower stopped?
Construction was paused in early 2018. The primary reason was related to labor disputes with the project’s main contractor, the Saudi Binladin Group, following political and economic shifts within Saudi Arabia at the time.
Is the Jeddah Tower taller than the Burj Khalifa?
Yes. The Burj Khalifa in Dubai stands at 828 meters. The Jeddah Tower will be at least 1,000 meters tall, making it over 172 meters (564 feet) taller than the Burj Khalifa.
Who is the architect of the Jeddah Tower?
The lead architect is Adrian Smith, and his firm is Adrian Smith + Gordon Gill Architecture. Adrian Smith was also the lead architect for the Burj Khalifa, giving him unparalleled experience in designing the world’s tallest structures.
When will the Jeddah Tower be finished?
With construction set to resume, a new completion date has not been officially announced. Completing the remaining structure and the complex interior fit-out will likely take several more years. Observers estimate a potential completion date sometime in the late 2020s.
Conclusion: A Symbol of Ambition and Innovation
The Jeddah Tower project is one of the most ambitious construction projects in human history. It pushes the boundaries of engineering, materials science, and design. From its deep foundations to its wind-slicing form, every element is a solution to a colossal challenge. It required a re-imagining of how we build tall.
The tower is more than a record-breaker. It is a symbol of a nation’s forward-looking vision. It is a powerful statement about the future of urban development. When it finally pierces the clouds, the Jeddah Tower will not just be the tallest building in the world. It will be a monument to human collaboration, perseverance, and our unending desire to reach new heights.
