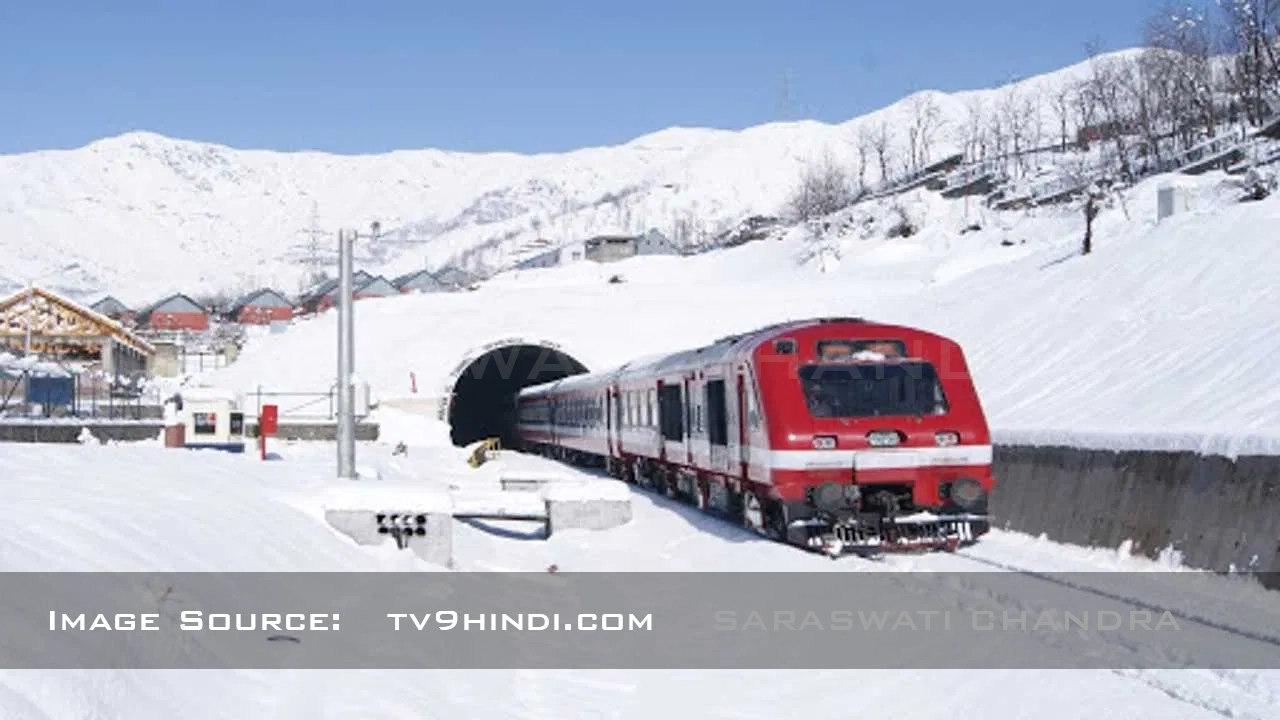

Pir Panjal Railway Tunnel: The Engineering Marvel Connecting Kashmir
The mighty Himalayas have long stood as a formidable barrier. They have isolated the beautiful Kashmir Valley from the Indian mainland, especially during harsh winters. However, modern engineering is changing this age-old reality. At the heart of this transformation is the Pir Panjal Railway Tunnel. This colossal structure is not just a tunnel; it is a lifeline. It is India’s longest and most ambitious transport tunnel. This article delves deep into this engineering masterpiece. We will explore its construction, its significance, and its profound impact on the region.
This marvel of engineering, also known as the T-80 tunnel, is a critical part of a much larger dream. That dream is the Udhampur-Srinagar-Baramulla Rail Link (USBRL). It aims to provide all-weather, reliable connectivity to the Kashmir Valley. The Pir Panjal Railway Tunnel is a testament to human ingenuity. It triumphs over one of the most challenging terrains on Earth.
What is the Pir Panjal Railway Tunnel?
The Pir Panjal Railway Tunnel is an 11.215-kilometer (6.96-mile) long railway tunnel. It is located in the Pir Panjal range of the Himalayas in Jammu and Kashmir. It is currently the longest transport tunnel in India. The tunnel connects the Banihal town in the Jammu division with the Qazigund town in the Kashmir Valley. By doing so, it provides a crucial link that remains operational throughout the year.
Before this tunnel, the primary connection was the Jawahar Tunnel for road transport. However, heavy snowfall often closes the Jawahar Tunnel during winter. This frequently cuts off the Kashmir Valley for extended periods. The railway tunnel, running at a lower altitude, bypasses these weather-related issues. It ensures uninterrupted movement of people and goods.
The Official Designation: T-80 Tunnel
In engineering and railway parlance, the tunnel is officially designated as T-80. This number is part of the systematic naming convention for tunnels under the USBRL project. While the world knows it as the Pir Panjal Railway Tunnel, “T-80” is the name used by the engineers and officials who built and operate it. It represents a specific section of this massive railway project.
A Key Component of the USBRL Project
The Pir Panjal Railway Tunnel cannot be viewed in isolation. It is the crown jewel of the Udhampur-Srinagar-Baramulla Rail Link (USBRL) project. This project is one of the most challenging railway projects ever undertaken by Indian Railways.
The Grand Vision of USBRL
The USBRL project aims to build a 272-kilometer-long railway line. This line will connect the Kashmir Valley to the rest of the Indian rail network. The project is a strategic and social imperative. It aims to foster deeper integration of the region with the rest of the country.
The project is being built in several phases. It involves the construction of hundreds of bridges and dozens of tunnels. These structures are needed to navigate the treacherous Himalayan terrain. Two of the most iconic structures of this project are:
- The Pir Panjal Railway Tunnel (T-80): Provides all-weather passage through the Pir Panjal range.
- The Chenab Rail Bridge: The world’s highest railway bridge, another engineering marvel on this line.
The completion of the USBRL project will finally make the dream of “Kashmir to Kanyakumari by train” a reality.
How the Tunnel Fits into the Larger Picture
The USBRL route is divided into different legs. The tunnel forms the core of the 118-km Qazigund-Baramulla section and the 18-km Banihal-Qazigund section. It effectively bridges the most difficult geographical divide on the entire route. Without this tunnel, a year-round rail link to the Valley would be impossible. It is the critical link that makes the entire project viable.
The Engineering and Construction Marvel
Building a tunnel over 11 kilometers long through the young and fragile Himalayas is a monumental task. The construction of the Pir Panjal Railway Tunnel pushed the boundaries of modern engineering.
The New Austrian Tunnelling Method (NATM)
The construction primarily used the New Austrian Tunnelling Method (NATM). This advanced technique is highly effective for dealing with unpredictable geology.
- What is NATM? NATM is a “design-as-you-go” approach. It allows engineers to adapt the tunnel’s support structures based on the actual rock conditions encountered during excavation. It uses the surrounding rock mass itself as a part of the support system.
- Why was it chosen? The Pir Panjal range has complex and varied geology. It includes soft rock, fractured rock, and areas with high water pressure. NATM provided the flexibility needed to tackle these changing conditions safely and efficiently.
- Implementation: Sophisticated machinery, including massive road-headers and drilling jumbos, was used. The excavated sections were immediately stabilized with shotcrete (sprayed concrete) and rock bolts.
Overcoming Geological and Environmental Challenges
The construction team faced numerous daunting challenges.
- Complex Geology: The tunnel passes through different rock classes, from stable to extremely poor. This required constant changes in excavation and support strategies.
- High Water Ingress: The teams encountered massive amounts of water flowing into the tunnel. At its peak, water ingress was as high as 100 liters per second. This required the installation of a robust waterproofing and drainage system.
- Rock Bursts and Squeezing Ground: In some sections, the immense pressure from the mountain caused rocks to burst unexpectedly. In others, the ground would “squeeze” or deform after excavation. These issues demanded advanced monitoring and reinforcement techniques.
- Extreme Weather: Work had to continue through harsh winters with heavy snowfall and freezing temperatures. This posed logistical challenges for moving equipment, materials, and personnel.
Key Construction Features and Statistics
The scale of the project is best understood through its numbers.
- Official Length: 11,215 meters (11.215 km)
- Tunnel Shape: A horseshoe-shaped tunnel.
- Tunnel Dimensions: 8.4 meters wide and 7.39 meters high.
- Excavation Method: NATM from both the north (Qazigund side) and south (Banihal side).
- Breakthrough Date: The two ends of the tunnel met with precision on October 28, 2011.
- Contractor: The project was executed by the Hindustan Construction Company (HCC).
- Parallel Escape Tunnel: A 3-meter wide escape tunnel or service road runs parallel to the main tunnel. This is a critical safety feature.
Inside the Pir Panjal Railway Tunnel: Safety and Technology
A tunnel of this length and strategic importance requires world-class safety features. The Pir Panjal Railway Tunnel is equipped with state-of-the-art systems to ensure the safety of passengers and operations.
State-of-the-Art Ventilation System
Maintaining air quality over an 11.2 km stretch is crucial. The tunnel has a sophisticated ventilation system. It is designed to pump fresh air into the tunnel and extract exhaust fumes or smoke. In case of a fire, powerful fans can control the direction of smoke. This creates a safe, smoke-free path for evacuation.
Fire Safety and Emergency Protocols
Fire safety is a top priority. The tunnel is fitted with multiple layers of protection.
- Fire Detection: Advanced sensors are installed throughout the tunnel to detect heat and smoke instantly.
- Fire Fighting System: A dedicated water pipeline with fire hydrants runs along the entire length of the tunnel. This allows firefighters to access water quickly at any point.
- Emergency Exits: The main tunnel is connected to the parallel escape tunnel through cross-passages every 300 meters. These passages allow people to move to the safe escape tunnel in an emergency. The escape tunnel can also be used by rescue vehicles.
Lighting and Communication Systems
The tunnel is illuminated 24/7 with a continuous lighting system. This ensures clear visibility for train drivers and maintenance crews. A robust communication system is also in place. It allows the train crew to be in constant contact with the central control room. This ensures a swift and coordinated response to any incident.
Impact and Significance of the Tunnel
The inauguration of the Pir Panjal Railway Tunnel on June 26, 2013, was a historic moment. Its impact has been transformative for the entire region.
All-Weather Connectivity for Kashmir
This is the most significant benefit. The tunnel has provided a dependable, all-weather link for the Kashmir Valley.
- Reduced Travel Time: The rail journey through the tunnel from Banihal to Qazigund takes about 9-10 minutes. The road journey over the mountain pass takes several hours and is often impossible in winter.
- Bypassing the Jawahar Tunnel: The railway line runs about 440 meters below the Jawahar road tunnel. This lower altitude means it is free from the heavy snowfall that plagues the road route.
- Reliability: For the first time, residents of the Valley have a reliable mode of transport that is not at the mercy of the weather. This has been a game-changer for students, patients, and daily commuters.
Economic and Social Transformation
Reliable connectivity has spurred economic growth and social integration.
- Boost to Trade: It has become much easier and cheaper to transport goods to and from the Valley. Kashmir’s famous apples, saffron, and handicrafts can now reach markets across India more efficiently.
- Tourism Promotion: The ease of travel has given a major boost to tourism. Tourists can now plan trips to the Valley with more certainty, even in the winter season. This supports local hotels, transporters, and artisans.
- Social Integration: The tunnel has brought people closer. It has strengthened the social and cultural ties between the Kashmir Valley and the rest of India.
Strategic and Military Importance
The tunnel holds immense strategic value. A reliable rail link to this sensitive border region is crucial for national security. It allows for faster and more efficient movement of troops, equipment, and supplies. This enhances the operational readiness of the armed forces in the region.
The Journey Through the Tunnel: A Passenger’s Perspective
Traveling through the Pir Panjal Railway Tunnel is a unique experience. Passengers board the train at Banihal station, nestled in the mountains. The train then enters the tunnel portal. For the next 9-10 minutes, it travels in a straight line deep inside the mountain. The interior is well-lit and smooth.
The most magical part is the exit. The train emerges from the darkness into the breathtaking landscape of the Qazigund area in the Kashmir Valley. The sudden change in scenery and even weather can be dramatic. The journey symbolizes the crossing of a major physical and psychological barrier. It reduces a journey of hours into mere minutes. This has made daily life much easier for thousands of people who commute between the two regions for work and education.
Distinguishing Pir Panjal Tunnel from Other Tunnels
There is often confusion between the various major tunnels in the region. It is important to distinguish them.
Pir Panjal Railway Tunnel vs. Chenani-Nashri Road Tunnel
- Purpose: The Pir Panjal Tunnel is a railway tunnel. The Dr. Syama Prasad Mookerjee Tunnel, also known as Chenani-Nashri Tunnel, is a road tunnel.
- Length: The Pir Panjal Tunnel is 11.2 km long. The Chenani-Nashri Tunnel is 9.2 km long.
- Location: Both are in Jammu and Kashmir, but on different routes. The Pir Panjal tunnel is on the Banihal-Qazigund rail line. The Chenani-Nashri tunnel is on the Jammu-Srinagar National Highway (NH 44).
Pir Panjal Railway Tunnel vs. Atal Tunnel
- Purpose: The Pir Panjal Tunnel is a railway tunnel. The Atal Tunnel is a road tunnel.
- Location: The Pir Panjal Tunnel is in Jammu and Kashmir. The Atal Tunnel is in Himachal Pradesh. It connects Manali to the Lahaul-Spiti Valley.
- Significance: Both are strategically important. The Pir Panjal Tunnel connects the Kashmir Valley. The Atal Tunnel provides all-weather connectivity to Lahaul and strategic access towards Leh.
Frequently Asked Questions (FAQ)
Here are answers to some of the most common questions about this remarkable tunnel.
Q1: What is the exact length of the Pir Panjal Railway Tunnel?
The Pir Panjal Railway Tunnel is exactly 11,215 meters, or 11.215 kilometers long. This makes it India’s longest railway tunnel.
Q2: Is the Pir Panjal Tunnel the longest in India?
Yes, it is India’s longest transport tunnel. This includes both road and rail tunnels. It is longer than any other operational railway or roadway tunnel in the country.
Q3: Which two places does the Pir Panjal Tunnel connect?
The tunnel provides a direct rail link between Banihal in the Jammu division and Qazigund in the Anantnag district of the Kashmir Valley.
Q4: What is the T-80 tunnel?
T-80 is the official engineering designation for the Pir Panjal Railway Tunnel within the framework of the Udhampur-Srinagar-Baramulla Rail Link (USBRL) project.
Q5: Is the tunnel safe for travel?
Yes, the tunnel is extremely safe. It is built with state-of-the-art technology, including advanced ventilation, fire-fighting systems, and a parallel escape tunnel for emergencies, adhering to the highest international safety standards.
Conclusion: A Lifeline Carved in Stone
The Pir Panjal Railway Tunnel is far more than just a hole in a mountain. It is a symbol of perseverance, a marvel of modern engineering, and a lifeline for the people of Kashmir. It has conquered geography to connect communities. It has boosted economies and strengthened the nation’s strategic capabilities. As a cornerstone of the USBRL project, it has paved the way for the complete integration of the Kashmir Valley into India’s vast railway network.
This tunnel represents a promise fulfilled. It is a promise of all-weather connectivity, economic prosperity, and a brighter future for Jammu and Kashmir. It stands as a proud monument to what India can achieve against all odds.
